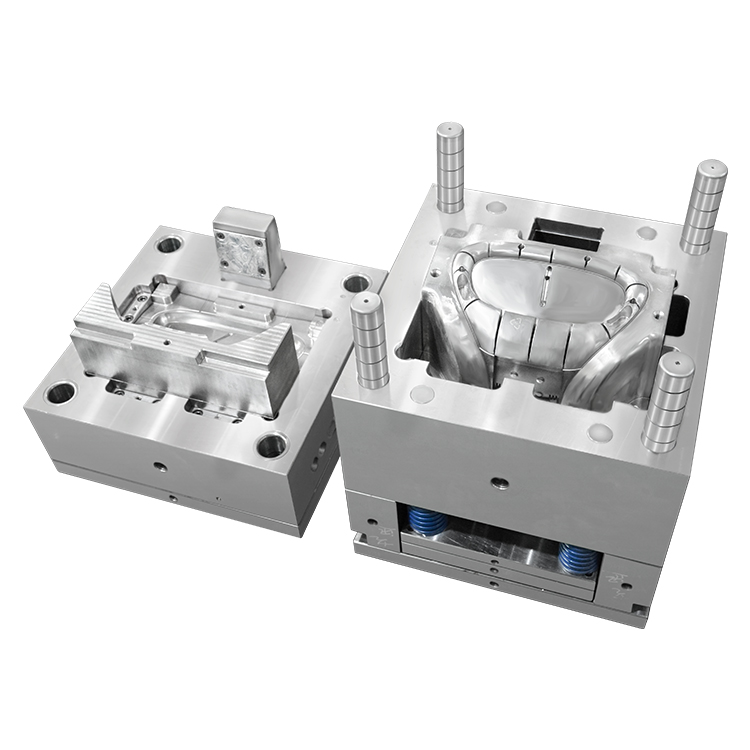

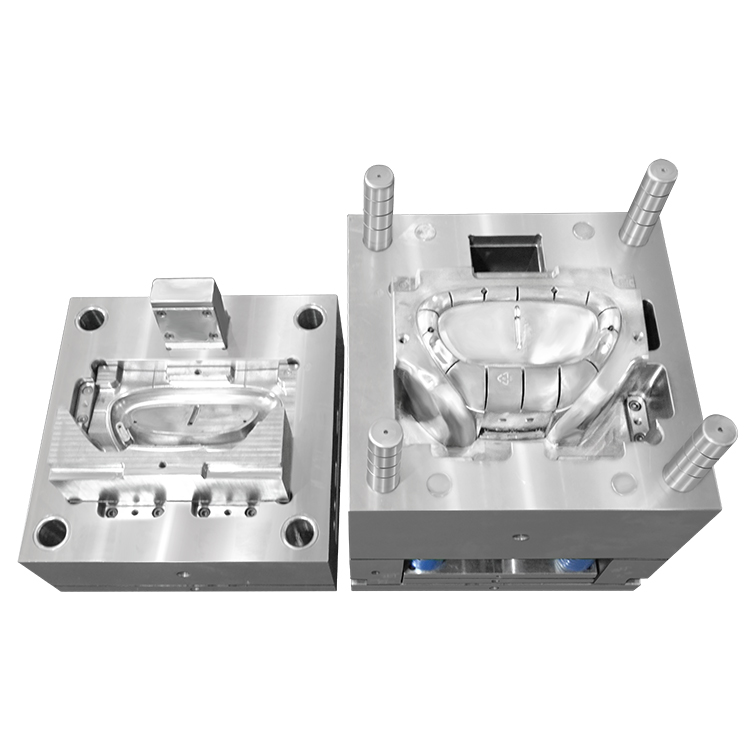

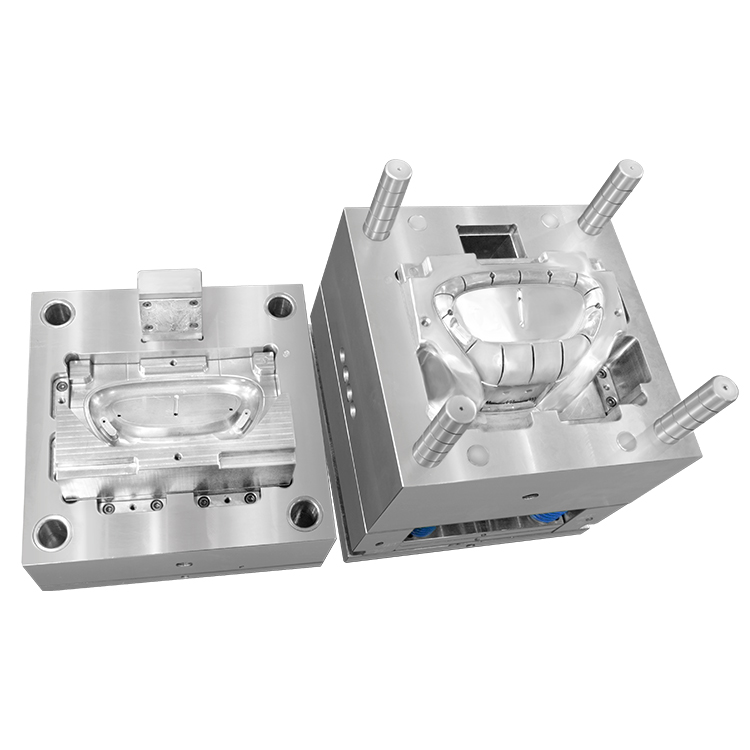

This is a high-quality 1×1 single-cavity injection mold, custom-manufactured to ISO9001 standards for producing the upper component of plastic handles in PP (Polypropylene) material. Designed with a submerged large gate runner system, premium XPM mold steel construction, and a standard MT-1055-2 texture finish, this mold delivers precise, durable, and visually consistent handle parts for household, industrial, and consumer applications.

Cantidad:
Estado de Disponibilidad:





Preguntar Añadir al carrito

Modelo:
19158
Marca del producto:
YIXUN mold
Código De Producto:
8480419090

Product Description

This is a high-quality 1×1 single-cavity injection mold, custom-manufactured to ISO9001 standards for producing the upper component of plastic handles in PP (Polypropylene) material. Designed with a submerged large gate runner system, premium XPM mold steel construction, and a standard MT-1055-2 texture finish, this mold delivers precise, durable, and visually consistent handle parts for household, industrial, and consumer applications.

Mold Technical Specifications

Parameter	Specification
Mold Configuration	1×1 single-cavity design
Runner System	Submerged large gate injection (tunnel gate)
Molding Material	PP (Polypropylene)
Cavity & Core Steel	XPM pre-hardened mold steel
Mold Texture	MT-1055-2 standard industrial texture finish
Certification	ISO9001 quality management system certified

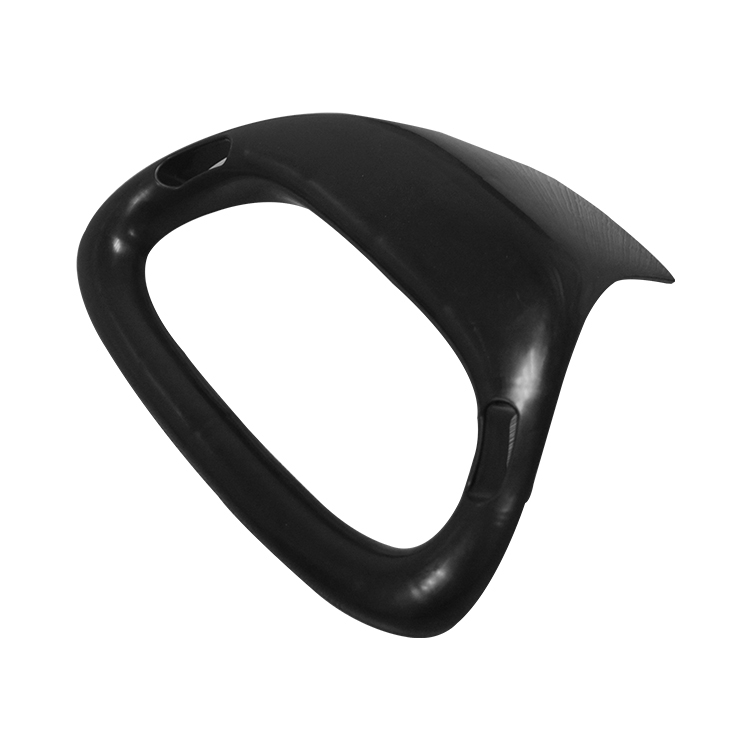

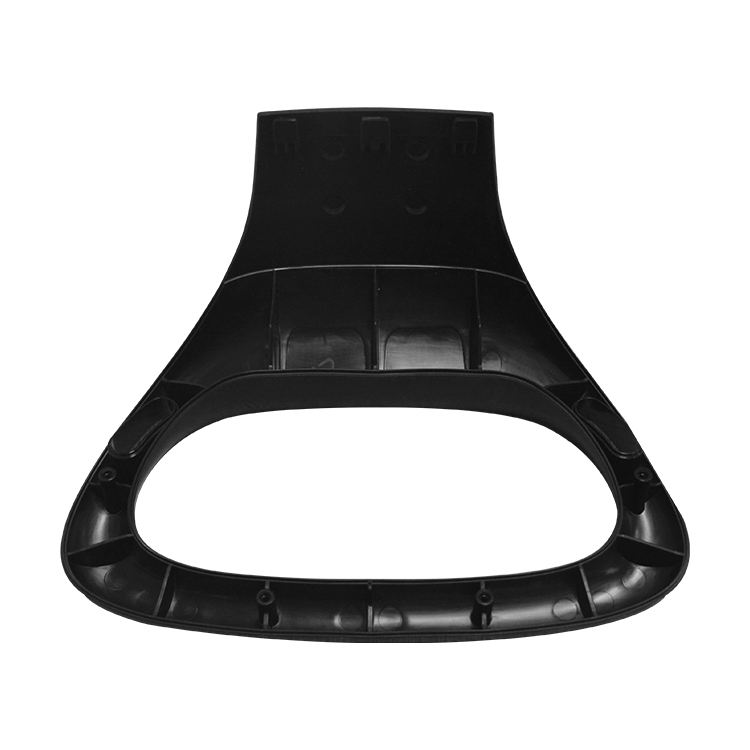

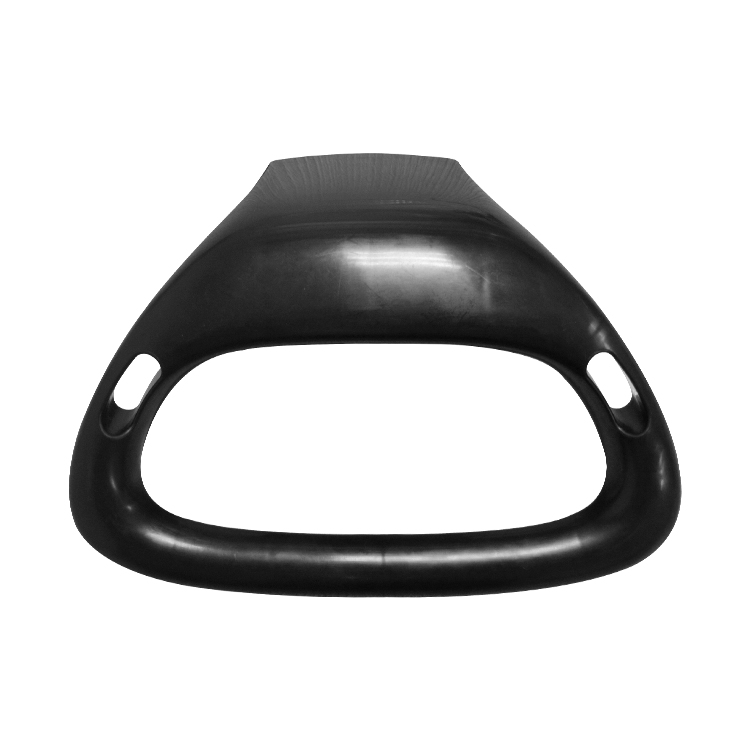

Application	Upper handle parts for tools, luggage, appliances, and consumer products

Key Design & Performance Advantages

1. 1×1 Single-Cavity Layout for Precision Control

The single-cavity design allows for full process control over the handle’s complex geometry:

Precision tolerance: Tight control over dimensions, angles, and mounting features, ensuring the upper handle fits perfectly with lower components.
Reduced defects: Eliminates flow imbalance issues common in multi-cavity molds, resulting in consistent wall thickness and structural integrity.
Ideal for complex shapes: Perfectly suited for ergonomic handle designs with curves, undercuts, and attachment bosses.

2. Submerged Large Gate (Tunnel Gate) Runner System

The submerged large gate design is optimized for PP handle parts:

Hidden gate mark: The tunnel gate is automatically sheared during ejection, leaving no visible vestige on the exterior surface of the handle.
High flow efficiency: The large gate size reduces shear stress, preventing material degradation and ensuring complete filling of the handle’s intricate features.
Automated production: Enables hands-free, fully automated molding cycles, improving efficiency and reducing labor costs.

3. XPM Mold Steel: Durability for Long Production Runs

XPM steel is a premium pre-hardened mold steel, ideal for medium-to-high volume production:

Excellent toughness & wear resistance: Resists fatigue and abrasion from repetitive PP injection cycles, extending the mold’s service life.
Uniform hardness: Ensures consistent dimensional stability, even after prolonged use, preventing deformation of critical handle features.
Superior texture retention: Maintains the MT-1055-2 texture finish over millions of shots, ensuring uniform appearance across all parts.

4. MT-1055-2 Mold Texture for Functional & Aesthetic Handles

The MT-1055-2 texture finish is a standard industrial grade, offering key benefits for handle parts:

Enhanced grip: The controlled texture provides a non-slip surface, improving user comfort and safety.
Hides minor imperfections: The matte finish masks minor molding marks, reducing the need for secondary finishing.
Consistent appearance: Achieved through controlled etching, the texture is uniform across all production runs, ensuring brand consistency.

5. ISO9001 Certified Manufacturing & Quality Assurance

Every step of this mold’s production adheres to ISO9001 quality management standards:

Full traceability: All materials, machining processes, and inspections are documented for complete traceability.
Rigorous testing: The mold undergoes multiple trial runs and quality checks before delivery to ensure it meets all specifications.
Reliable performance: Certified quality control ensures consistent, defect-free parts production, minimizing downtime and waste.

Typical Applications

This mold is designed for manufacturing upper handle components for a wide range of products, including:

Household appliance handles (vacuum cleaners, irons, mixers)
Power tool and garden tool handles
Luggage and suitcase handles
Furniture and cabinet pull handles
Medical and laboratory equipment handles

Conclusion

The 1×1 cavity PP submerged gate injection mold is a reliable, high-performance solution for producing precision plastic handle upper parts. With its optimized gate design, durable XPM steel construction, standard MT-1055-2 texture, and ISO9001 certification, it delivers consistent, high-quality results for a wide range of consumer and industrial applications.
