1*2 Cavity PP Material 2-point Hot Runner XPM Mold Steel Motor Housing Injection Molding

1*2 Cavity PP Material 2-point Hot Runner XPM Mold Steel Motor Housing Injection Molding

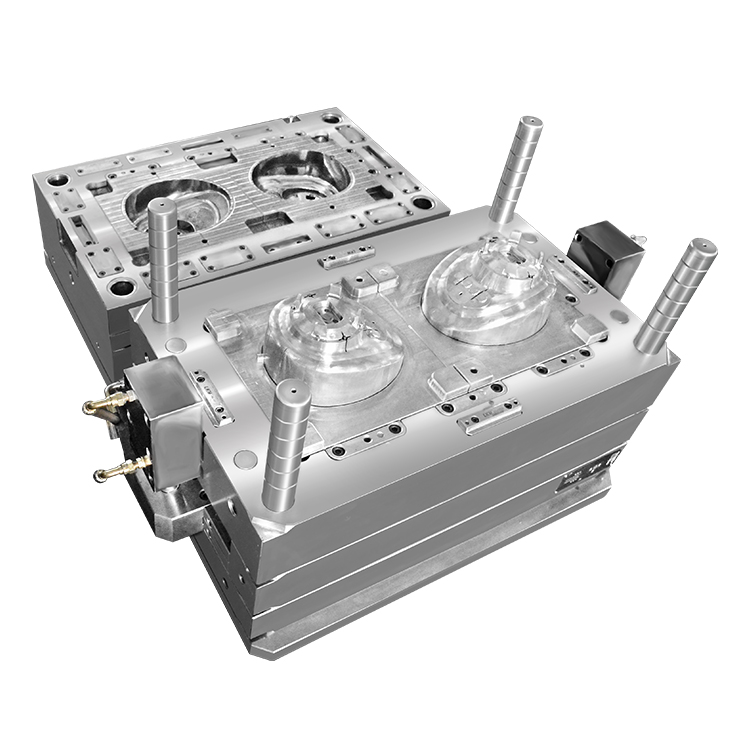

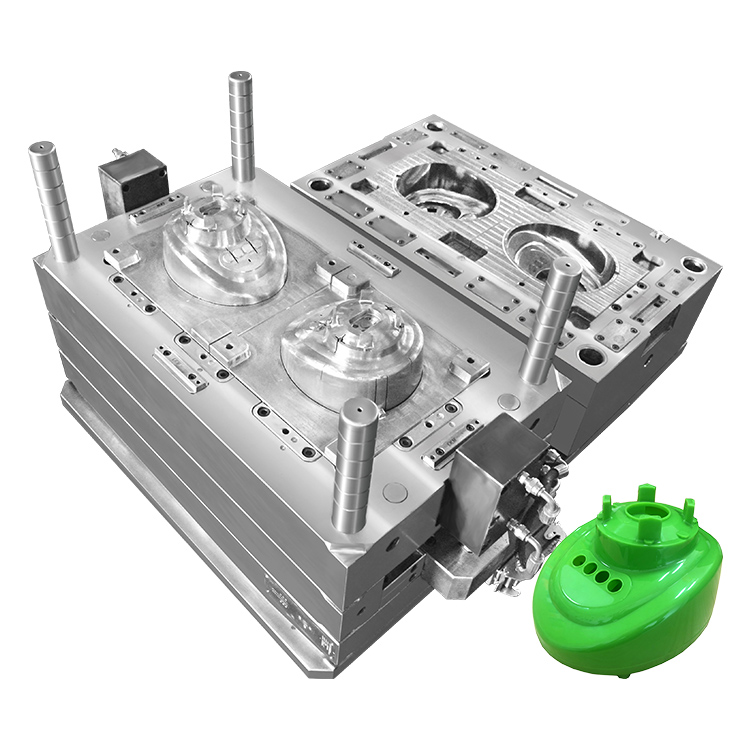

This is a high-precision 1×2 balanced cavity injection mold, custom-engineered for manufacturing durable PP plastic motor housing components. Featuring a 2-point hot runner system and premium XPM mold steel construction, this mold delivers consistent, high-volume production of motor housings with tight tolerances, smooth surfaces, and long-term dimensional stability. Optimized for PP’s lightweight and impact-resistant properties, it is ideal for motor enclosures used in household appliances, power tools, and small industrial equipment.

Cantidad:
Estado de Disponibilidad:





Preguntar Añadir al carrito

Modelo:
19155
Marca del producto:
YIXUN mold
Código De Producto:
8480419090

Product Description

This is a high-precision 1×2 balanced cavity injection mold, custom-engineered for manufacturing durable PP plastic motor housing components. Featuring a 2-point hot runner system and premium XPM mold steel construction, this mold delivers consistent, high-volume production of motor housings with tight tolerances, smooth surfaces, and long-term dimensional stability. Optimized for PP’s lightweight and impact-resistant properties, it is ideal for motor enclosures used in household appliances, power tools, and small industrial equipment.

Mold Technical Specifications

Item	Specification
Mold Configuration	1×2 balanced cavity design, producing 2 motor housings per cycle
Runner System	2-point hot runner injection, balanced and independent feeding for each cavity
Molding Material	PP (Polypropylene), impact-resistant grade
Cavity & Core Steel	XPM mold steel (pre-hardened, high toughness, wear-resistant)
Application	Motor housings, appliance motor enclosures, power tool covers, industrial motor components
Key Features	High efficiency, balanced filling, long service life, precise tolerance control

Key Design & Performance Advantages

1. 1×2 Balanced Cavity Layout for High Productivity

The symmetrical 2-cavity design ensures identical melt flow, cooling, and ejection for both motor housings:

Uniform part quality: Eliminates flow imbalance, ensuring consistent wall thickness, dimensional accuracy, and structural strength between the two housings.
Doubled output: Produces two complete motor housings per cycle, significantly reducing unit production costs and supporting mid-to-high volume manufacturing runs.
Stable molding process: Symmetrical cavity geometry prevents warpage or uneven shrinkage, critical for maintaining alignment of motor mounting points and screw bosses.

2. 2-Point Hot Runner System for PP Motor Housings

The dual-point hot runner system is purpose-built for large, complex PP motor housing parts:

Balanced filling: Each cavity receives independent, uniform melt supply, ensuring complete filling of intricate features such as mounting bosses, ventilation slots, and rib structures without short shots.
No material waste: Eliminates cold runner scrap, reducing raw material costs and streamlining the production workflow.
Consistent melt quality: Maintains uniform temperature throughout the cycle, preventing PP degradation or discoloration, ideal for long-term production runs.

3. XPM Mold Steel: Durability & Thermal Stability

XPM steel is a premium pre-hardened mold steel, ideal for medium-to-large plastic molds requiring toughness and wear resistance:

High toughness and wear resistance: Resists fatigue and abrasion from repetitive PP injection cycles, extending the mold’s service life.
Uniform hardness: Ensures consistent dimensional stability, even after prolonged use, preventing deformation of critical features like screw bosses and mounting flanges.
Excellent polishability: Accepts fine polishing and texturing, creating smooth surfaces that meet both functional and aesthetic requirements for motor housings.

4. PP Motor Housing Optimization for Structural Integrity

This mold is tailored to the unique requirements of PP motor housings:

Reinforced rib structure: Optimized mold design prevents sink marks or warpage on thick sections and rib features, ensuring the housing maintains structural rigidity under load.
Ventilation and cooling optimization: Built-in venting and cooling channels eliminate common PP defects like burn marks, flow lines, or voids, resulting in clean, high-quality parts.
Precision mounting features: Tight tolerances on screw bosses and alignment holes ensure perfect fit and assembly with motor components.

5. Industrial-Grade Quality & Reliability

This mold is engineered to meet the strict quality standards of industrial and appliance applications:

Long service life: The combination of XPM steel and hot runner technology ensures consistent performance over millions of shots, reducing maintenance and downtime.
Easy maintenance: The mold’s robust design and standardized components simplify routine cleaning and repairs, supporting continuous production.
Versatile application: Suitable for a wide range of motor housing sizes and designs, making it adaptable to various household and industrial equipment needs.

Typical Applications

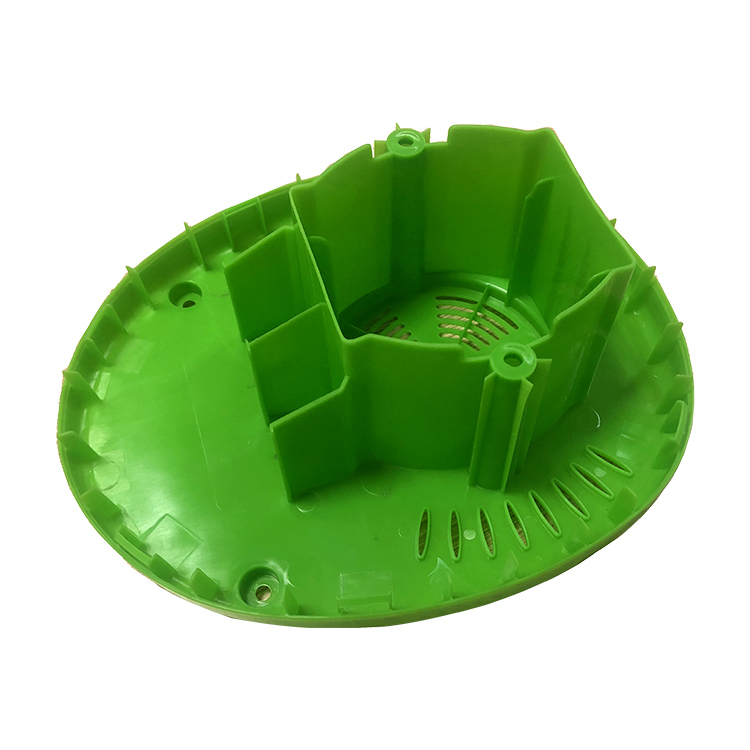

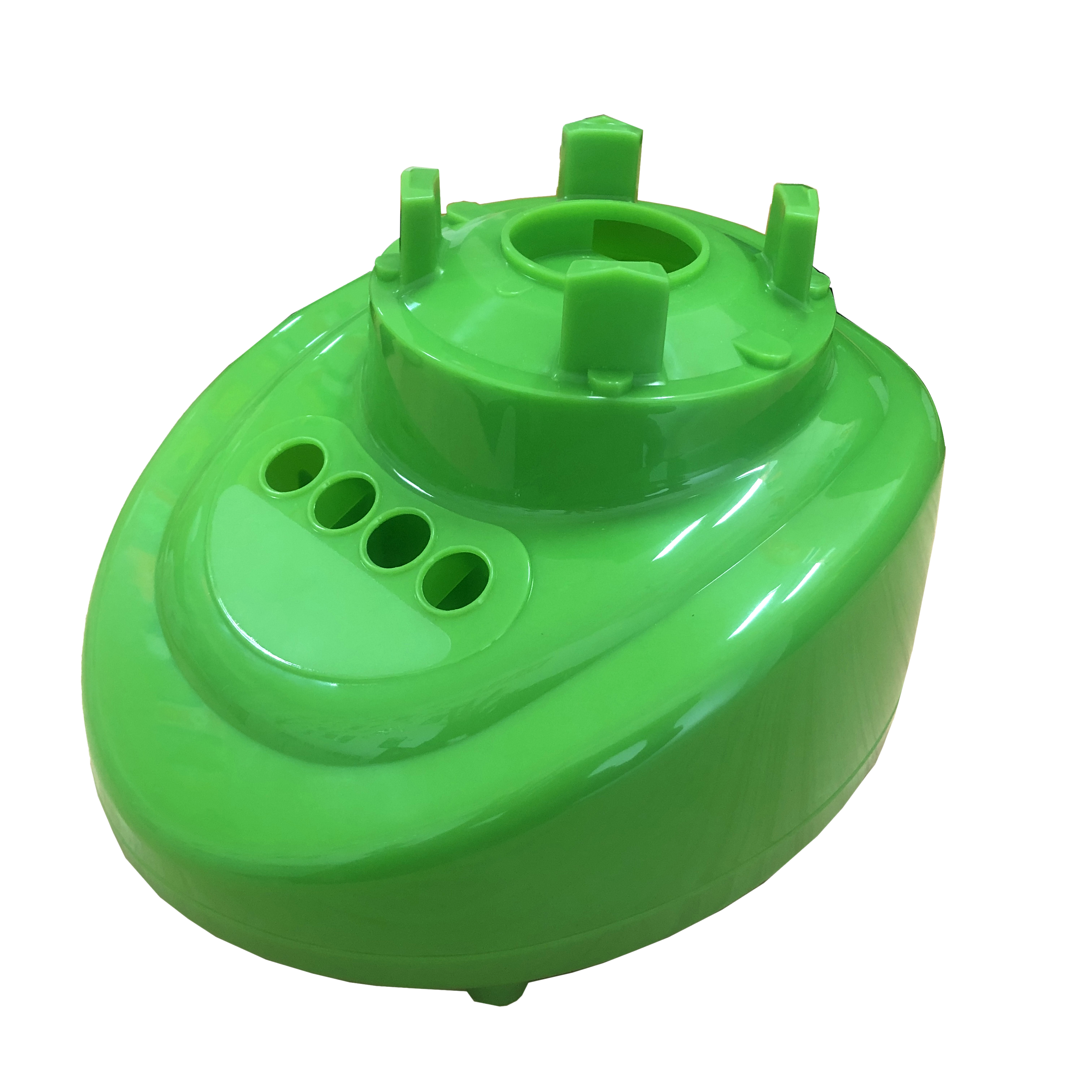

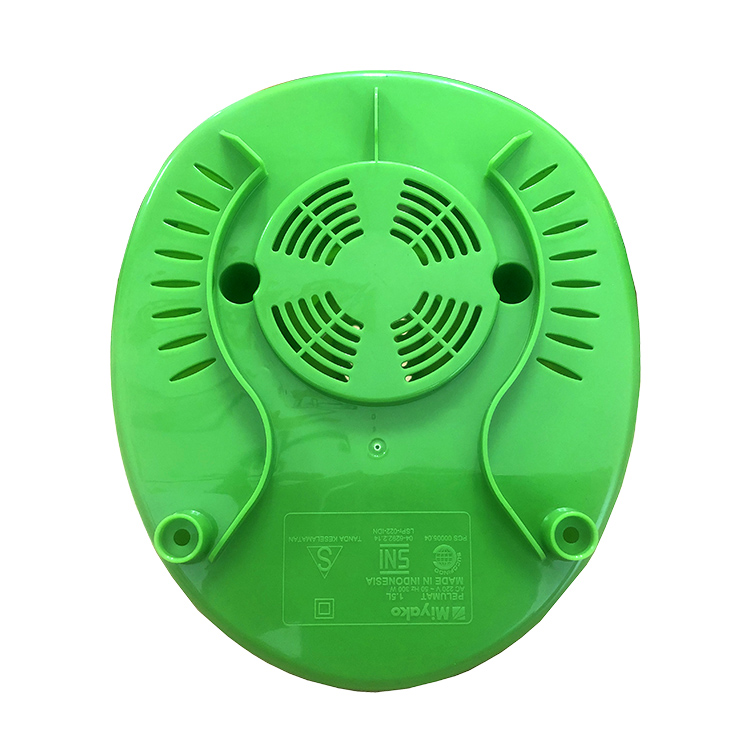

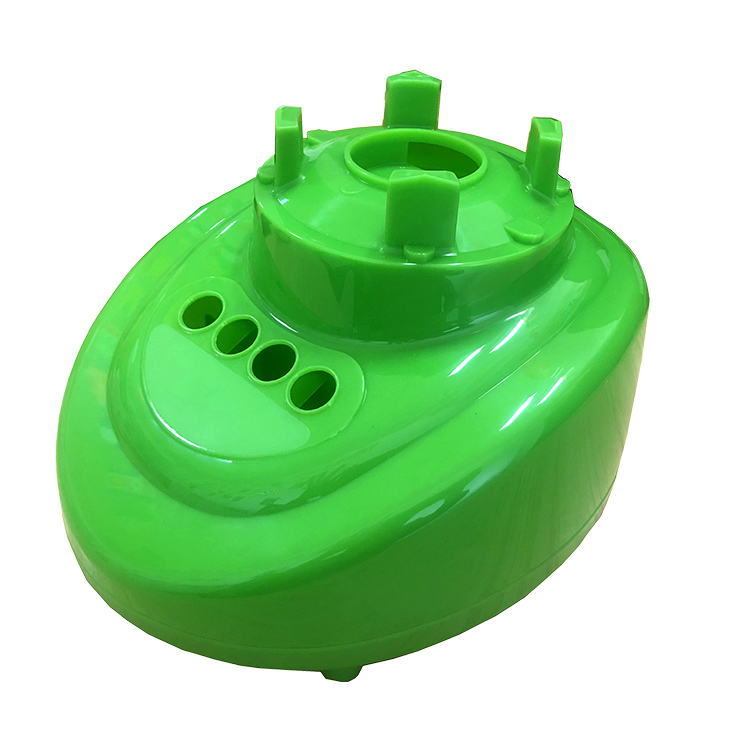

This mold is ideal for producing high-quality PP motor housings used in:

Household appliances (blenders, mixers, vacuum cleaners)
Power tools (drills, saws, grinders)
Small industrial equipment motors
Automotive auxiliary motor components
HVAC and ventilation system motors

Conclusion

The 1×2 cavity PP hot runner injection mold is a high-performance solution for manufacturing durable motor housing components. With its balanced cavity design, 2-point hot runner system, and XPM steel construction, it delivers consistent, cost-effective production of precision PP parts, making it an ideal choice for mass production in the appliance and industrial sectors.
