Precision Engineering Plastic Mold for Plastic Industry Gear Parts

Product Introduction

Mold Core Advantages

1. Ultra-Precision Tooling

• Machined with ±0.005mm dimensional tolerance (critical for gear tooth alignment and meshing accuracy).

• Features advanced EDM (Electrical Discharge Machining) for complex gear profiles (helical teeth, splines, and internal/external gear structures).

2. Durability & Material Compatibility

• Constructed from S136 stainless steel (corrosion-resistant) or H13 tool steel (high hardness), ensuring 1,000,000+ production cycles.

• Optimized for engineering plastics (POM, PA66+GF, PBT) — materials widely used for high-strength, low-friction gears.

3. Efficient Mass Production

• Hot/cold runner options (cold runner minimizes plastic waste for small gears).

• Rapid cooling systems reduce cycle time to 15–25 seconds per part, maximizing output for high-volume orders.

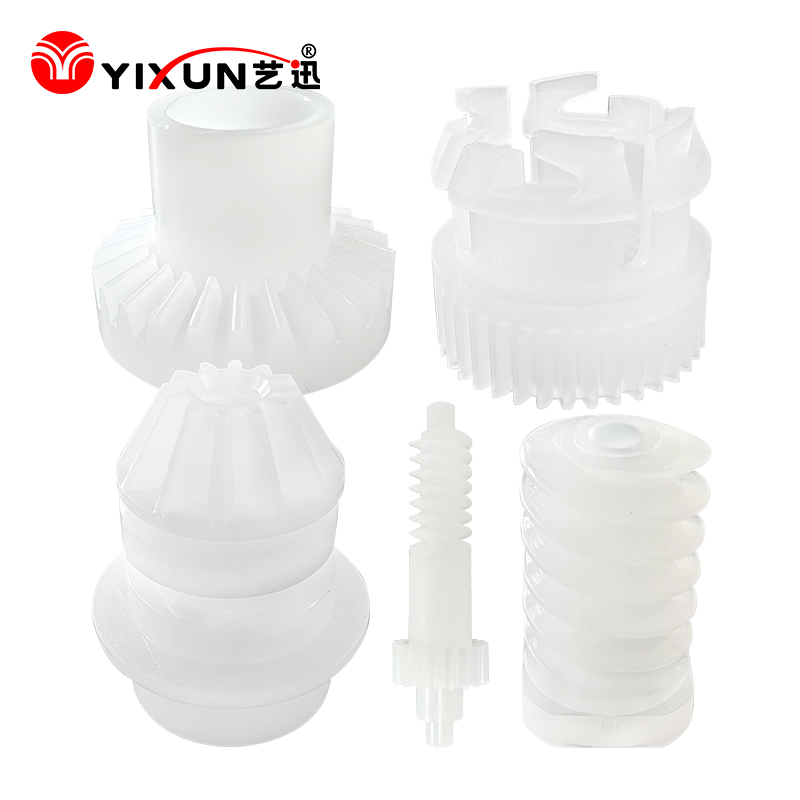

Molded Gear Component Highlights

• Mechanical Reliability: Precise tooth profiles ensure smooth power transmission (low noise, minimal wear).

• Material Performance: POM/PA66 gears deliver high fatigue resistance and dimensional stability.

• Versatility: Suitable for copier systems, small appliance drivetrains, or industrial automation components.

Mold Customization Options

• Gear types: Spur gears, helical gears, worm gears, or custom mechanical connectors.

• Cavity count: 1–8 cavities (adjusted for production volume).

• Surface finish: Matte, glossy, or textured (per part assembly needs).
